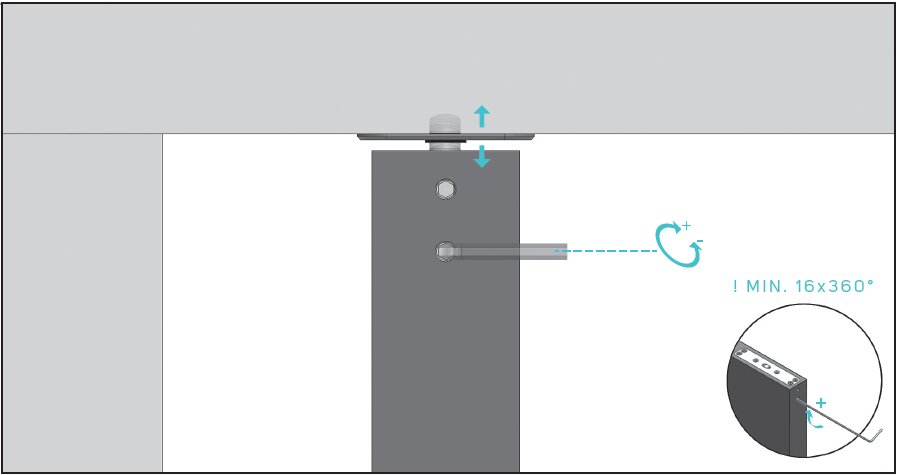

ADJUSTING THE GAP
The gap around the door can be adjusted using a 5mm hex key in the top hole.

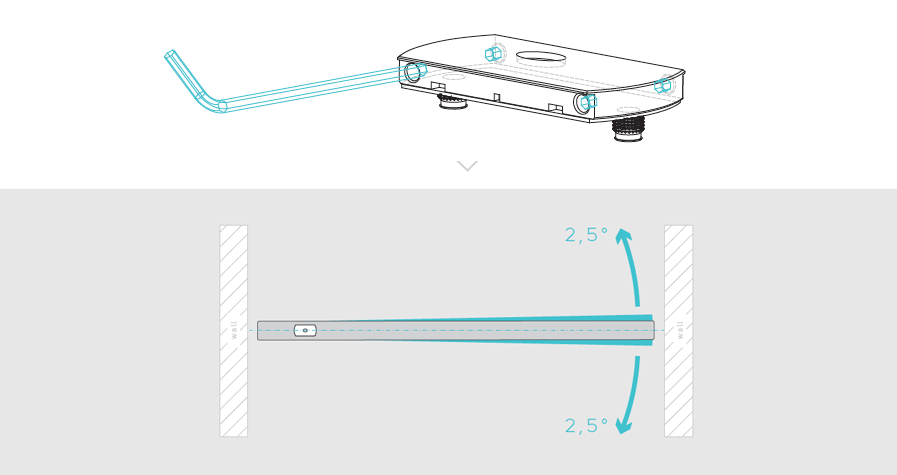

ADJUSTING THE 0° POSITION OF YOUR DOOR
First, remove the small plastic caps from both sides of the floorplate. Loosen the 4 screws using a 3mm hex key. Adjust the angle of the door to what will be the resting angle 0° position.
Important: Don’t forget to tighten the 4 screws again after adjusting.

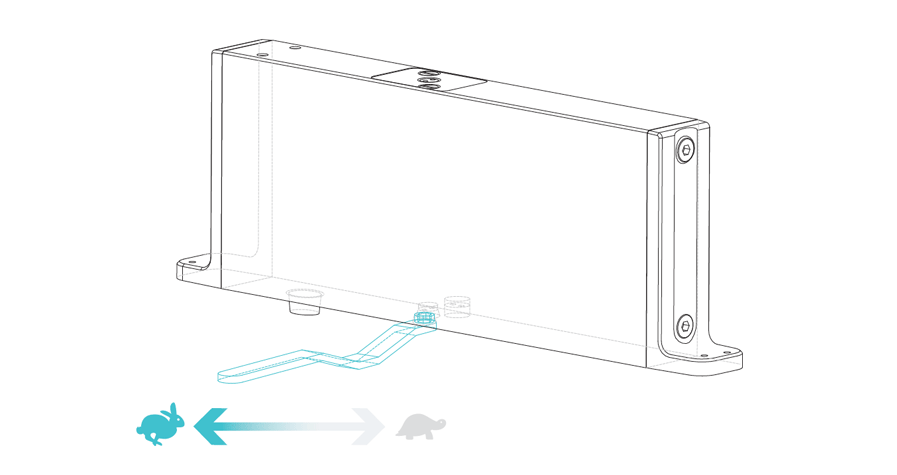

SETTING THE CLOSING SPEED
The closing speed can be adjusted using the key shipped with each hinge System.
To the right: more damping (SLOWER).
To the left: less damping (FASTER).
